Tilt Sensor: XL345 Based on ADXL-345 3-Axis Tilt Sensor PCB V1.0, Altium Designer PCB Project

PCB Design

PCB XL345 - Tilt 3-Axis Accelerometer Sensor Based on IC ADXL345.

=  =  =  =  =  =  =  =  =  =  =  =  =  =  =  =  = = = = = = = = = = = = =

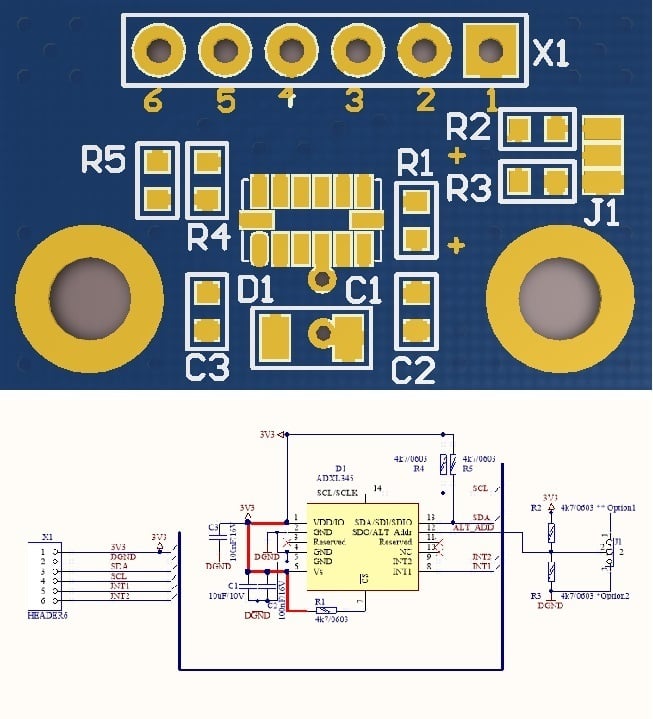

Presented PCB Design includes Schematics and Connected to SCH Fully Routed PCB.

It is a working design, with produced PCBs.

Main Microcontroller

Zip File Content:Created on Altium Designer V15.

ADXL345.PCBDOC,

ADXL345.SchDOC,

ADXL345.PCBPRJ

Original Design maiden By Hardware Expert
